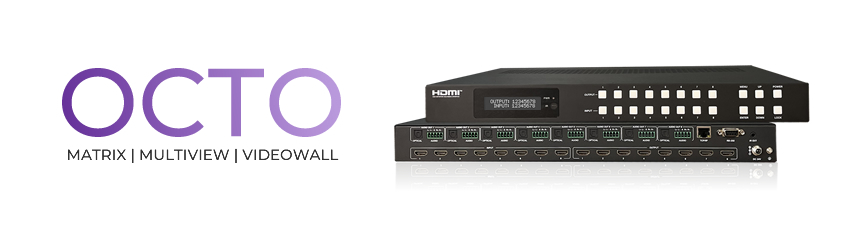

OCTO 8x8 Seamless Matrix is a perfect solution for video transmission of 8 HDMI sources to 8 4K of FHD displays. Video resolutions is up to 4K@60Hz 4:4:4. Each output supports resolution downscaling individually. It features Matrix, Video Wall and Multiview functions and built-in WEB server. Seamless switching ensures a smooth picture transition without frame loss. This matrix can be controlled via front panel buttons, IR remove, RS-232 and remote Web GUI.
- HDCP 2.2 compliant
- Support video resolution up to 4K2K@60Hz 4:4:4 and 18 Gbps video bandwith, as specified in HDMI 2.0b
- Support seamless switching
- Support 12 display categories in multi-view mode
- Suppot 8 route L/R balanced audio output
- Each output supports horitzontal mirror and vertical mirror
- Blank screen, blue screen and output off are optional when no signal outputs
- HDMI audio format: LPCM, Dolby Digital/Plus/EX,Dolby True HD, DTS, DTS-EX. DTS-96/24, DTS High Res, DTS-HD Master Audio
- SupportCECcontrol, andmultiple video resolution output
- Supportpower-offmemoryand advanced EDID management
- Controlviafront panel buttons, IR remote, RS-232, and Web GUI
- Compactdesignforeasyandflexible installation, standard height of 1U
Easy route input to any output or create and easy access presets and configurations using Web Based Software, Stream Deck or direct front buttons.
Dual Multiview Outputs each with 16 customizables layouts. Easy switch between layouts using the Web Based Software or front panel buttons
Wide range of possibilities with 8x8 4K60 HDMI IN/OUT. Easy build impressive Video Walls with maximum flexibility. A perfect All in One Solution for command centers, public spaces, live events and more.

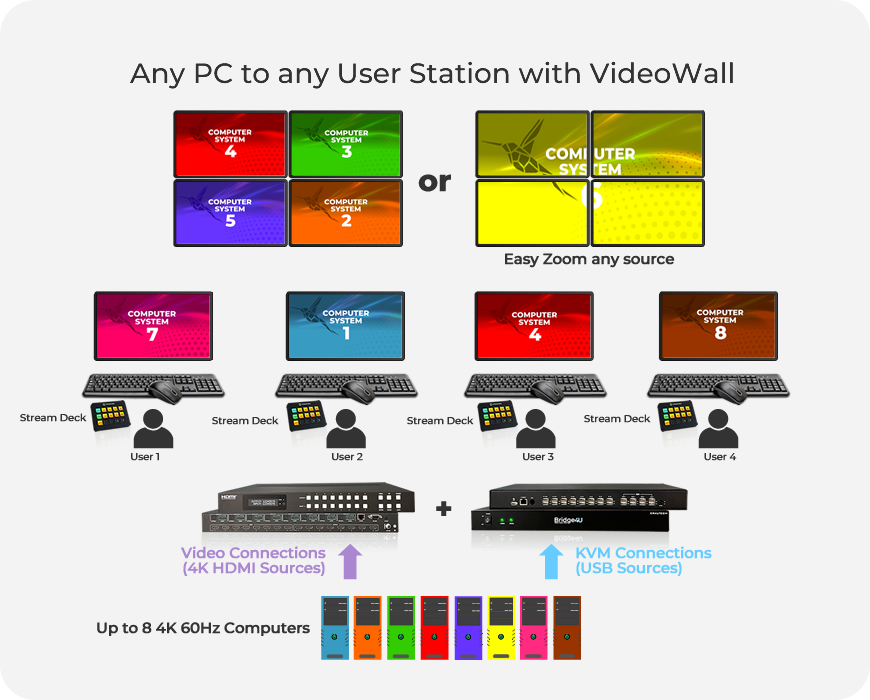

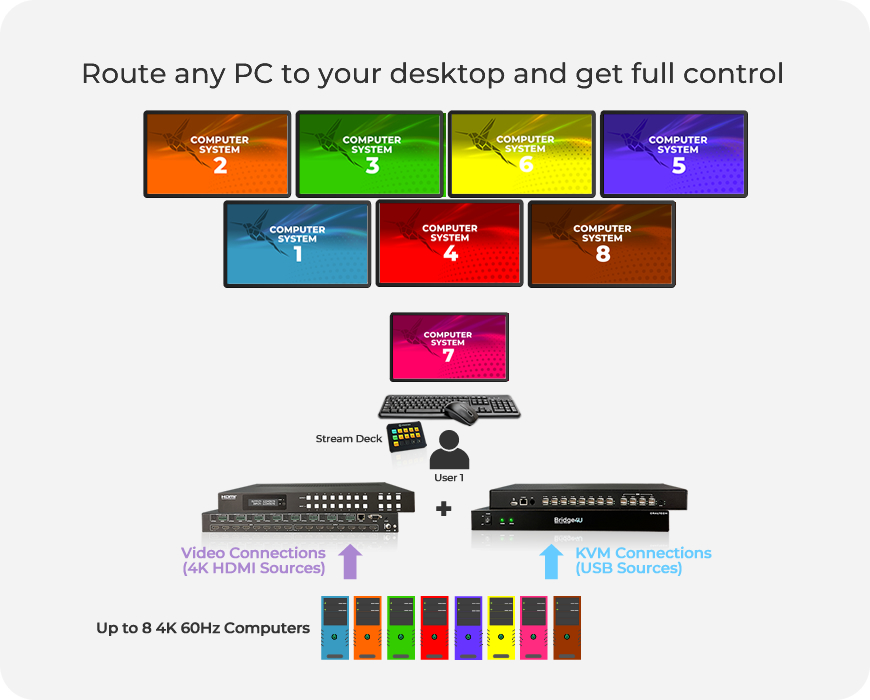

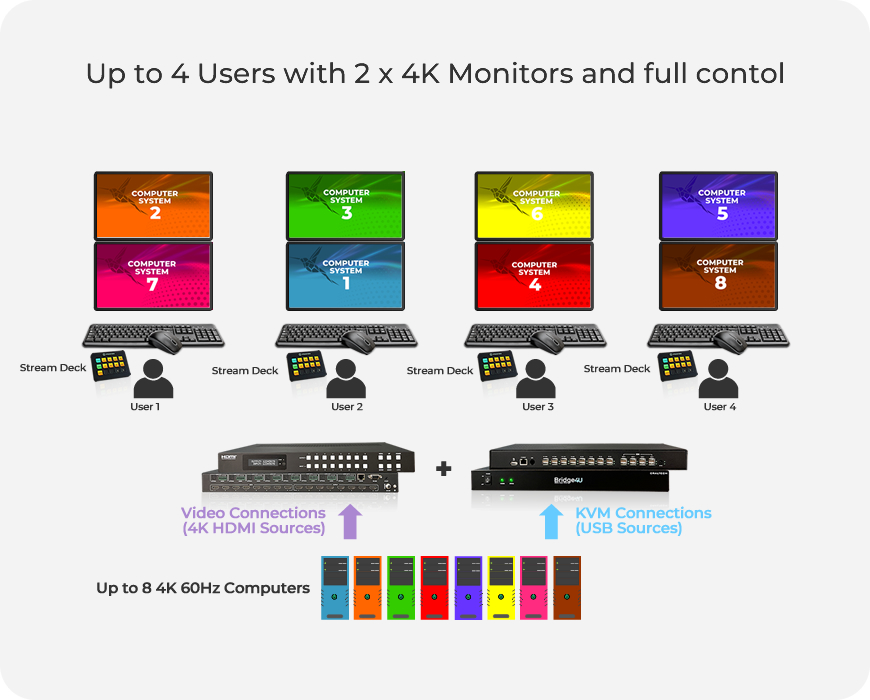

Bring OCTO to the next level and combine it with our Bridge4U to add KVM on your installation. Use Stream Deck to effortlessly switch between PC sources and control them easier than ever. Up to 4 user can operate with the system at the same time.
Enjoy full control of your sources at your fingertips!
- Quality Control
- Engineering Departments
- R&D Departments
-Control Rooms
- Banking control rooms and offices
- Stock Market & Brokers control rooms
- Cryptocurrency Servers and control
- Engineering Departemnts
- Software and games design
- Design & Modeling Departments
- Live Stream Set Up
- e-Sportes
- Gaming & Software Dessign
- Presentations & Conferencing
- Events
- Training facilities
- Control Rooms
- KVM Remote control optimization
- Courtrooms
- Mission critical environments
- Control rooms
- Conferences & Corporate events
- Multi-screen live events
- Casinos
- Stadiums
