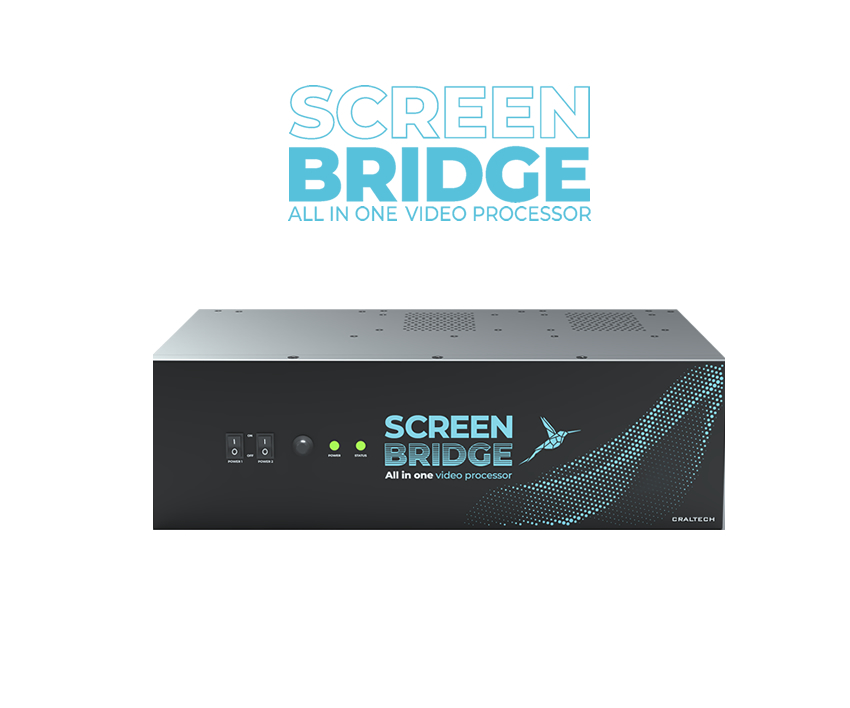

Revolutionize Your Control Room with ScreenBridge
Unlock the power of ScreenBridge, the ultimate All-in-One Video Processor designed for seamless video wall processing, operator workspace consoles, and premium control room solutions. Whether you are managing a small control room or a large-scale operation, ScreenBridge simplifies your workflow with user-friendly, flexible, and easy-to-set-up features.
Seamlessly integrate and manage all your sources with cutting-edge Matrix, Switcher, Multiviewer, KVM, and VideoWall options and latency-free operation. Operators can easily switch between different layouts or configurations working remotely or from a central interface, adapting your control room videowall to changing requirements and providing tailored view of critical information and enabling full control fast and easy. Screenbridge is fully compatible with Stream deck!
Turn Your Workstation into a Fast & Easy Stress-Free Co-Operative Space
Combine ScreenBridge with Bridge4U and increase the number of Operators and add the new SMART TOOLBAR functionallity to your Screenbridge. Each Operator will be able to Re-size the sources and adjust the layouts, Swap sources between the different windows Fast & Easy, send signals to a Video Wall and interact with it, ALL DIRECTLY ON SCREEN with no additional software! Also, each Operator will be able to enjoy absolute mouse surfing around the created layouts. Turn your workstation into a Co-Operative space and remove stress from your Operators by providing them a super fast & easy environment to work with!
Compact 16, 24, 40 I/O Models
From Small Control Rooms to Large Installations.
Multiview, KVM, Matrix, Videowall? Get it All-in-ONE!
Multiview
Experience the versatility of the ScreenBridge with Multiview feature. Whether you prefer a full image, a Quad-Split, or a Multiview Layout, ScreenBridge enables you to display them effortlessly on any screen. This powerful and future-proof solution ensures cutting-edge multiple source viewing capabilities.
KVM
Simplify your workflow and maximize efficiency with the KVM option and enjoy seamless control of all your sources using just one mouse and keyboard. With intuitive touch commands and mouse control, take full control of your control room or installation with no more than 2-3 gestures.
MATRIX
Switch a standard single image on any screen effortlessly. The input signal is automatically detected and can be routed to any output using our high-quality 10-bit image processing engine. Each input can integrate a UMD (Under Monitor Display) and signal information for enhanced functionality.
Videowall
Use multiple screens to display one of your signals. Customize the size and correct edge bezels to achieve the perfect visual display. With just one ScreenBridge unit, you can effortlessly manage multiple video walls for auditoriums, conference rooms, live events, lobbies, and sports arenas.
One Device, Unlimited Possibilities
Modular System
Discover the limitless potential of ScreenBridge modular system, empowering you to design and build your own tailored solution. With versatile I/O cards accommodating various connectivity requirements, customization has never been easier.
FPGA Technology
ScreenBridge utilizes FPGA (Field Programmable Gate Array) technology as a hardware-based solution. Its high-performance scaling engine and 10-bit processing guarantee state-of-the-art image quality and maximum reliability.
Scalable Growth
As your needs evolve, the ScreenBridge grows with you, allowing seamless upgrades and refits in the future. This not only provides cost savings but also ensures continuity and familiarity with the system.
Complete Flexibility
The ScreenBridge Processor System offers complete flexibility, ensuring it can be fully customized to match the unique requirements of any project or event.
Third-Party Integration & Protocol Support

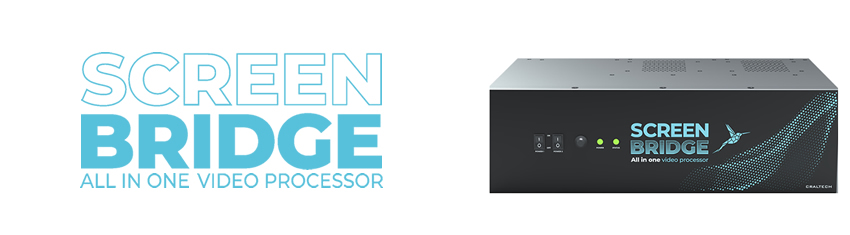

SPECIFICATIONS
Connections
VIDEO INPUTS
- Up to 40 x FHD HDMI (MODULAR SYSTEM - each board have 4 x HDMI FHD Inputs)VIDEO OUTPUTS
- Up to 40 x HDMI (10 can be 4K UHD the rest FHD) (MODULAR SYSTEM - each board have 4 x HDMI Outputs, 1 can be 4K the rest FHD)KVM
- Up to 16 x KVM outputs- 2 x USB Inputs for Mouse and keyboard
Compatibility
All kind of OS compatibleUpdates
All updates can be done through USB and EthernetConfiguration
- Through Ethernet control free software. Compatible with Streamdeck and SNMP agents.- Multiview and Video wall Modes
Compatible format
HDMI INPUTS
- Formats: 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50), 720p (60 / 59.94 / 50) and multiple PC resolutionsControl
External control
Full control of all parameters through ethernet using Cralsoft free software. Also compatible with StreamDeck and any SNMP agent.Power requirements
Power supply
DC 12V/10APower Fail protection
Saved Configuration will preserve and restore inmediatly when power back.Physical Specifications
TBDEnvironmental Specifications
Operating Temperature
32°F – 104°F / 0°C – 40°CStorage Temperature
-4°F – 140°F / -20°C – 60°COperating Humidity
20% – 80% relative humidity, non-condensingStorage Humidity
10% – 90% relative humidity, non-condensingWarranty
2 year warranty on the electronics. Limited Manufacturer warranty.CSB16
16 IN/OUT Chassis- 4 slots for Input Boards
- 4 slots for Output Boards
- 16 IN/OUT when fully populated
CSB24
24 IN/OUT Chassis- 6 slots for Input Boards
- 6 slots for Output Boards
- 24 IN/OUT when fully populated
CSB40
40 IN/OUT Chassis- 10 slots for Input Boards
- 10 slots for Output Boards
- 40 IN/OUT when fully populated
CSB4IHD
Input Board- 4 x HDMI Input Board
CSB4ISDI
Input Board- 4 x 3G/SD SDI Input Board
- Coming soon
CSB4OHD
Output Board- 4 x HDMI Output Board
CSB4KVM
Output Board- 4 x KVM Output Board
Flexible and Easy to use, ScreenBridge can be used in a wide range of applications
