Professional 12G LCD Monitors Full HD 18

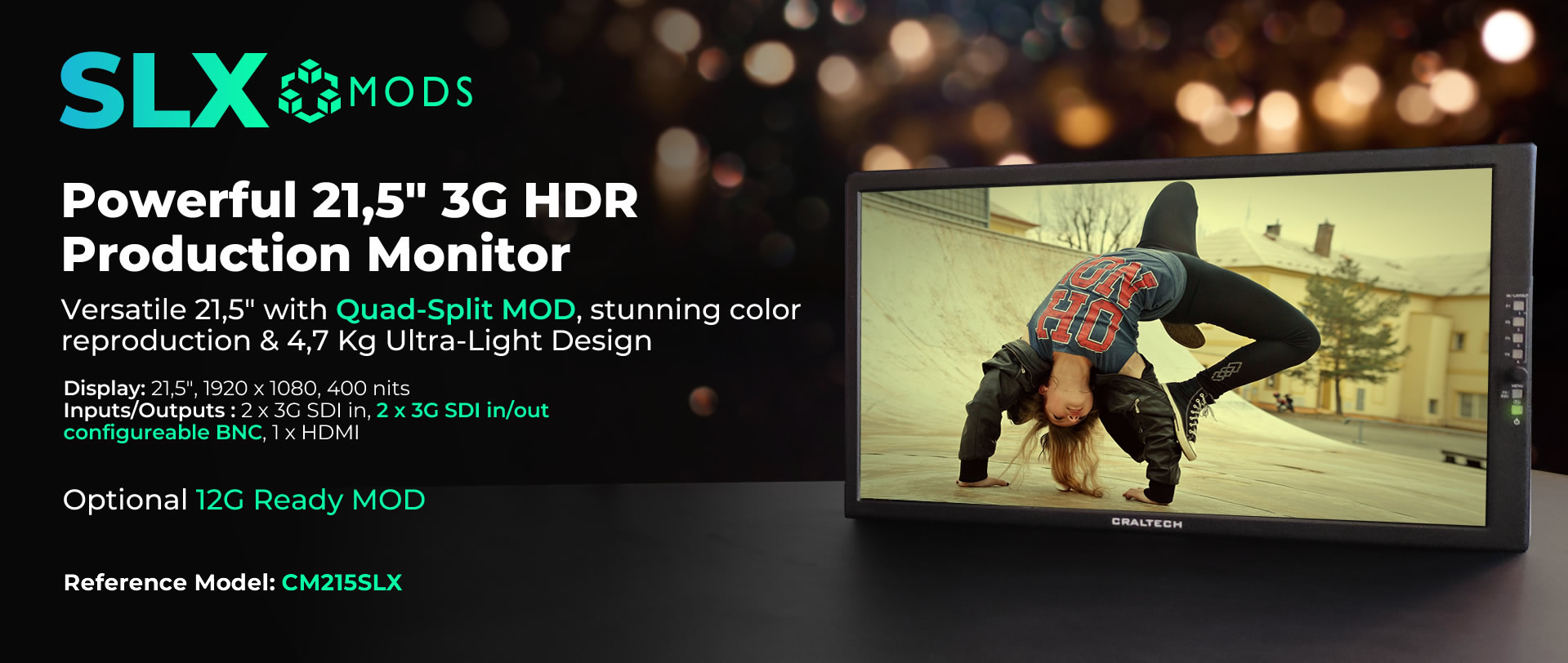

Versatile 21,5” Professional LCD Monitor with Quad-Split and HDR.


PLUMA SERIES is a new line of professional LCD Monitors with 2 x 3G/HD/SD-SDI, 1 x HDMI and 2 free configurable 3G SDI BNC connectors. Select to use them as inputs and display on screen 4 x 3G SDI inputs using the Quad MODE, or use them as active loop through of SDI inputs 1 and 2.

PLUMA SERIES integrates our new superior quality 12 bit image processing engine, HDR pre-visualization (HLG, PQ, SLOG) options and 3D LUT colour management options for accurate reproduction of all standard sources.

The rugged and Ultra-Light aluminum design and wide viewing angles displays, makes them easy to integrate, and our energy-efficient board design and LED backlight display grant low temperature while working.


Professional 12G LCD Monitors

Full Featured Monitors


- 21,5" LED Backlight LCD Monitor
- 2 x 3G/HD/SD-SDI Autosensing inputs, and 2 x 2 x 3G/HD/SD-SDI Configureable Input/Output
- 1 x FHD HDMI Input
- 12 bit image processing based in FPGA, image no delay
- Build-in Quad- Split MOD
- HDR supports PQ (ST2084), HLG, SLOG-3
- Color space: REC709/EBU/SMPT-C/DCI-P3/REC2020
- Support user 3D LUT files import
- Color temperature adjustment (5600K, 6500K, 9300K and User (R, G, B Gain and Bias adjustment))
- 3D LUT Color calibration with ColourSpace.
- Brightness, Contrast, Saturation adjustment
- Aspect Ratio Selection (4:3, 16:9)

- Gamma correction
- Backlight adjustment
- Blue Only / Monochrome
- Markers
- Built in Audio Disembedder, 16 channel Audio Level Meters
- UMD & Tally
- Real time color Waveform and Vectorscope
- Selectable RGB, R, G, B, YCbCr, Y, Cb, Cr waveform
- Selectable transparency of all scopes and Audio level Meters
- Focus assist
- False color
- Quick control: Easy to use keyboard with user configurable direct keys and encoder
- Space-saving lightweight aluminium design
- Fanless, energy-efficient design



Features LCD Monitors
Features LCD Monitors



Versatile design & Maximum flexibility with configurable 3G SDI inputs/outputs

PLUMA Monitors integrate 4 x BNC SDI connectors. Connectors 2 and 4 can be set as Inputs or as Outputs. Select to use them as inputs and display on screen 4 x 3G SDI inputs in QUAD VIEW LAYOUT.

With maximum flexibility, cuadrant 4 can be configured to display SDI Input 4 or the HDMI source.

Features LCD Monitors


Maximum flexibility to control your sources with Advanced Quad-Mode

Select between Quad View or Full Screen View of any of your sources. In Quad Mode display the 4 x 3G/HD/SD-SDI or the HDMI input. Each quadrant can display sources with different format (1080i50Hz, 1080p25Hz,...), and can integrate up to 16 channel Audio Level Meters of embedded audio (on the 3G SDI sources), real time color Waveform and Vectorscope, Time code (on the 3G SDI sources),... Each window has image resize capability in Quad and Full Screen view, so scopes, audio Level Meters,... can be located inside or outside the image. All this adjustments can be made using the OSD menu or remotely using our Soft4Boxes Lite control software.



12G Professional monitors Features LCD Monitors

All the Professional Features you need on your workstation


Estos monitores disponen de todas las características profesionales tales como UMD y Tally, Blue Only, Relación de aspecto seleccionable, marcadores, monitor de forma de onda y vectorscopio a tiempo real (SDI 1 y SDI 2), 16 canales Audio level meters, alarmas, timecode, ajuste de backlight y temperatura de color (5600K, 6500K , 9300 K, y la ganancia RGB y el ajuste Bias),...



And much more ...


PLUMA monitors come packed with features designed to meet the demanding needs of broadcast professionals, including HDR, 3DLUT calibration, waveforms and vectorscope, signal alarms, and so much more. PLUMA monitors boast a powerful 12-bit image processing engine, ensuring that every detail of your content is accurately captured and displayed with exceptional clarity and precision.

With the high brightness panels, you can count on these monitors to deliver accurate, vivid colors and sharp images, even in the most challenging lighting conditions. And with HDR 3DLUT calibration, you can be sure that your colors are always accurate and consistent, regardless of the lighting environment. The built-in waveforms and vectorscope provide valuable tools for ensuring that your signal is accurate and your colors are balanced. And with signal alarms, markers, tallys, Audio level meters, false colour, focus assist and other features you can stay on top of any issues that arise during your broadcast, ensuring that you always deliver a flawless performance.

PLUMA monitors are also packed with additional features to make your job easier, including Quad-split and picture-by-picture functions, easy to use configuration SNMP compatible software and integrate user configurable direct keys and encoder to easy navigate through the OSD menu. Any adjustment can be located in a direct key, to access functions just with a press, and keys LED lights can be turned off if required for dark environments. With easy-to-use controls and a sleek design, these monitors are a joy to use.

PLUMA-12G Monitors also include an SFP module slot, adapt them to your needs and easily expand your input options with our optional SFP modules, including optical fiber, HDMI, and accepts IP SMPTE-2110 and IP SMPTE-2022 modules too, making it easier than ever to integrate into your existing IP infrastructure. With the ability to add more inputs in the future, you will never have to worry about limitations when it comes to your broadcast setup.

Upgrade to our high brightness Broadcast monitors today and experience the ultimate in flexibility, adaptability, and cutting-edge technology - the perfect choice for any professional broadcast setup.


Features Quad-split LCD Monitors

HDR Pre-visualization

HDR Pre-visualization (HLG, PQ, SLOG) with tetrahedral LUT interpolation engine of 4.913 points (17x17x17)

Features Quad-split LCD Monitors

3D LUT

3D LUT Color Management options for accurate reproduction of all standard sources (Rec709, EBU, SMPTE-C and DCI) and custom color spaces

Features Quad-split LCD Monitors

Slot SFP

Adapte sus monitores a sus necesidades, seleccione uno de los módulos SFP opcionales (fibra óptica, HDMI, ...) y añada más entradas en el futuro! AHORA Disponible IP SMPTE-2110 y IP SMPTE-2022

Features Quad-split LCD Monitors

Procesado de imagen a 12 bit

Procesado de imagen a 12 bit de calidad superior que ofrece degradados suaves y sin bandas.

Features Quad-split LCD Monitors

Marcadores

Gran variedad de marcadores y security areas disponibles con selección de color y nivel de transparencia de cortina. Posibilidad de personalizar su marcador si los marcadores estándar no se adaptan a sus necesidades.

Features Quad-split LCD Monitors

Ajuste de temperatura de color y Gamma

Ajustes de colorimetría broadcast profesional, con corrección de gamma y selección de temperatura de color (5600K, 6500K, 9300K y User con ajustes RGB, Gain y Bias)

Features Quad-split LCD Monitors

Blue, Red and Green Only, y Monochrome

Blue Only, Red Only, Green Only, Blue All, Red All, Green All, Monochrome y Inverse.

Features Quad-split LCD Monitors

16 Canales Audio Level Meter

Muestre hasta 16 canales Audio Level Meters con un amplio rango de opciones (Todos juntos, separados en pares-impares,.. Nivel amarillo y rojo seleccionable y 2 tamaños diferentes disponibles.

Features Quad-split LCD Monitors

Monitor de onda y vectorscopio

Monitor de onda y vectorscopio a tiempo real. Monitor de onda seleccionable entre RGB, R, G, B, YCbCr, Y, Cb, Cr y 2 tamaños distintos de los scopes. Coloque sus scopes donde quiera en cada uno de los quadrantes.

Features Quad-split LCD Monitors

Timecode e Información de formato

ATC Timecode e informacion de formato de video en pantalla

Features Quad-split LCD Monitors

Alarmas

Alarmas en pantalla de video y audio con color y tiempo seleccionable. No Input, Black Image, No Audio, Silence.

Features Quad-split LCD Monitors

Tally y UMD

Tally Rojo, Verde y ambar y 16 caracteres UMD compatibles con TSL 3.1 y TSL 5.0. Tres modos de tally disponibles: Square, Border y UMD (pueden activarse todos a la vez)

Features Quad-split LCD Monitors

Focus Assist

Focus assist ajustable. Múltiples colores diferentes.

Features Quad-split LCD Monitors

False color

Compruebe la exposición de la imagen utilizando la herramienta False color.

Features Quad-split LCD Monitors

1:1 Pixel Mapping

Mapeo de píxeles 1:1 de las fuentes cuya resolución es diferente a la resolución nativa del panel.

Features Quad-split LCD Monitors

PaP - Picture and Picture

Picture and Picture de sus señales SDI con todos los scopes y ajuste de tamaño de imagen.

Features Quad-split LCD Monitors

Color de Borde y Texto seleccionable

Color de Borde y texto seleccionable. Colores disponibles: negro, blanco, rojo, verde, azul, cian, magenta, amarillo y 7 niveles de gris.

Features Quad-split LCD Monitors

Encoder & teclado con Doble Funcionalidad

Encoder para navegar fácilmente a través del menú OSD, y teclas directas con doble funcionalidad (fija/configurable). Active [Fn] Mode para usar las teclas con sus configuraciones personalizadas y acceda a sus ajustes favoritos más rápidamente. Las luces de las teclas pueden desactivarse si es necesario para entornos oscuros.

Features Quad-split LCD Monitors

Soft4Boxes Pro Software de control

Soft4Boxes Pro es nuestro nuevo software para controlar los monitores de las series SFX (Stand Alone y quad-split). S4B PRO es una interfaz intuitiva y fácil de usar "drag & drop". * Haz click para más información!


SPECIFICATIONS



LCD Panel


- 21.5" LCD GRADE A Panel
- 1920 x 1080 pixels LED Backlight display
- Brightness: 350 cd/m²
- Contrast: 1000:1
- 178,178 Wide viewing angles


Connections


VIDEO INPUTS

- 4 x 3G/HD/SD-SDI Autosensing BNCS (2 of them selectable as Input or Active loop through (firmware MOD))
- 1 x HDMI
- 1 x SFP Module slot optional
- 2 x 12G optional inputs

Compatibility

Autosensing inputs between 3G/HD/SD and simultaneous viewing of all inputs with different resolutions and frequencies.

Updates

Through USB 2.0 high speed connection or Ethernet.

Configuration

Through Ethernet control free software Soft4Boxes Pro.


Compatible format


3G Standards

- SMPTE 424M-2006 level A and Level B Dual Stream (B-DS)
- Format: 1920x1080p (60, 59.94, 50)
- Cable lenght: 85m Belden 1694A
- BNC Connector

HD Standards

- SMPTE 274M and SMPTE 296M
- Formats: 1080p (30, 29.97, 25, 24, 23.98, 30PsF, 29.97PsF, 25PsF, 24PsF, 23.98PsF) 1080i (60, 59.94, 50) 720p (60, 59.94, 50)
- Cable lenght: 100m Belden 1694A
- BNC Connector

SD Standards

- SMPTE 125M/259M
- Formats: 480i (59.94) 576i (50)
- Cable lenght: 250m Belden 1694A
- BNC Connector

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656, ITU‑R BT.601.

Audio Level Meters

Vu-meters standard in every input (16ch on 3G/HD/SDI and 8ch on HDMI)

SDI Video Sampling

4:2:2

SDI Audio Sampling

Standard frequency of 48 kHz and 24 bits.

SDI Color Precision

4:2:2 of 10 bits input and 12 bit internal processing.

SDI Color space

YUV


Control


Built-in Keyboard

Multiple user configurable keys and encoder for adjusting all the monitor parameters.

External control

Full control of all parameters through ethernet using our free software Soft4Boxes or any other SNMP agent.

Calibration

Full compatible with Light illusion calibration software.


Power requirements


Power supply

12V External power supply
IEC Cable (included) for 100-240 V.

Power Fail protection

Configuration will preserve and restore inmediatly when power back on the monitor.

Power Consumption

26 W


Physical Specifications




Environmental Specifications


Operating Temperature

0 °C a 40 °C (32 °F a 104 °F)

Storage Temperature

–20 °C a 45 °C (–4 °F a 113 °F)

Relative Humidity

0 % a 90 % without condensation

Warranty


1 Year warranty on the LCD panel and 2 year warranty on the electronics. Limited Manufacturer warranty.
