4K Modular Multiviewer video processor

Professional easy to use 4K Modular Multiviewer

The 4craft is a compact (1RU) 4K Multiviewer with superior quality 10 bit image processing engine with low processing delay. The modular design allows to create custom solutions of up to 16 inputs (3G/HD/SD SDI) and up to 4 outputs (3G/HD/SD SDI), and display all inputs on-screen simultaneously in any size and position. Up to 6 layouts can be stored in the 4craft. 4craft is an easy to use Multiviewer with Dual Functionality front keyboard and encoder for quick control and fast configuration of the equipment. With compact and Lightweight 1 RU Aluminium design, 4craft is a fanless and energy-efficient Multiviewer that grant low temperature while working.

4K Modular Multiviewer Box4Boxes draw

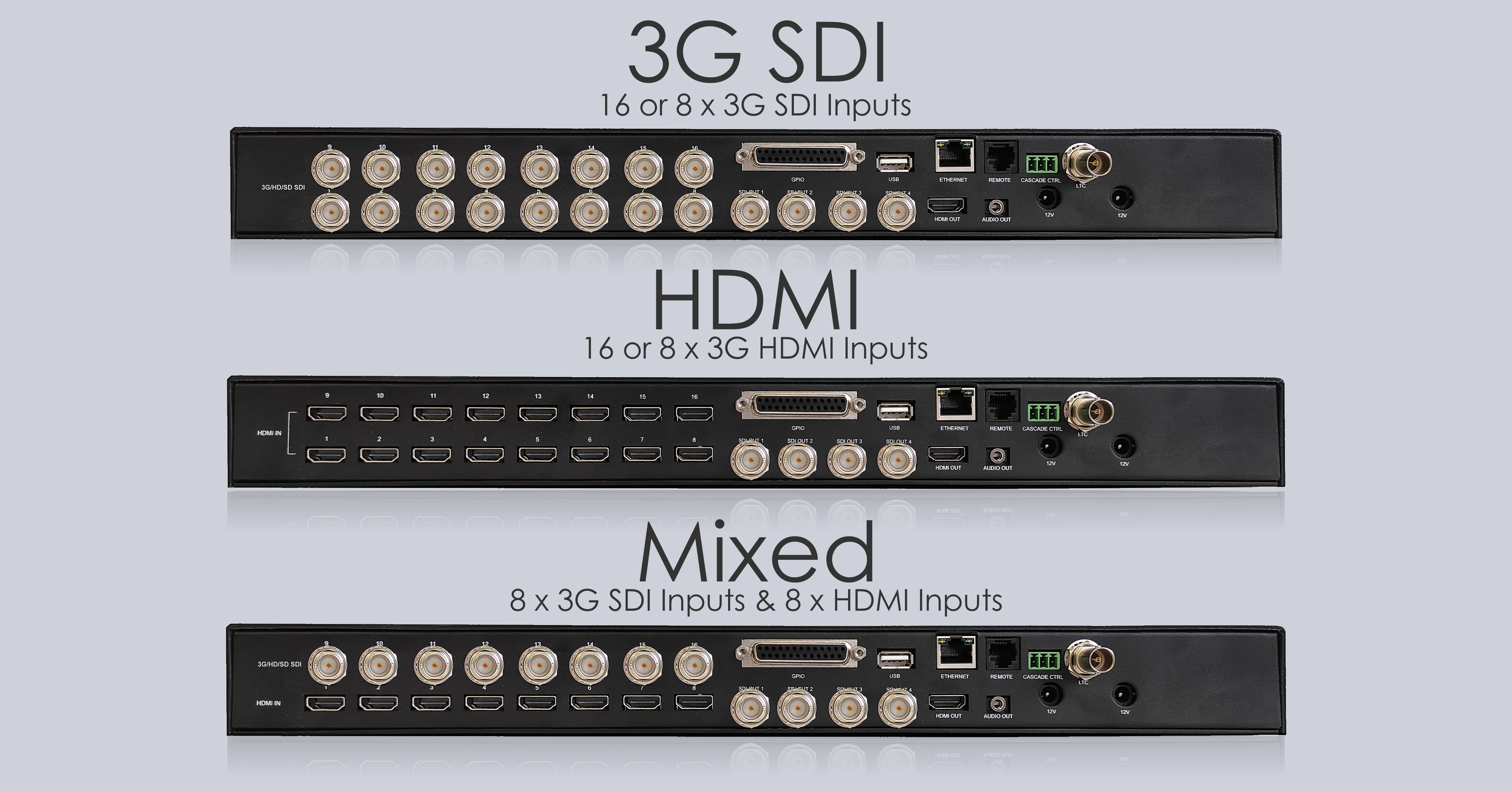

4K & 3GSDI outputs & Cascading Capability

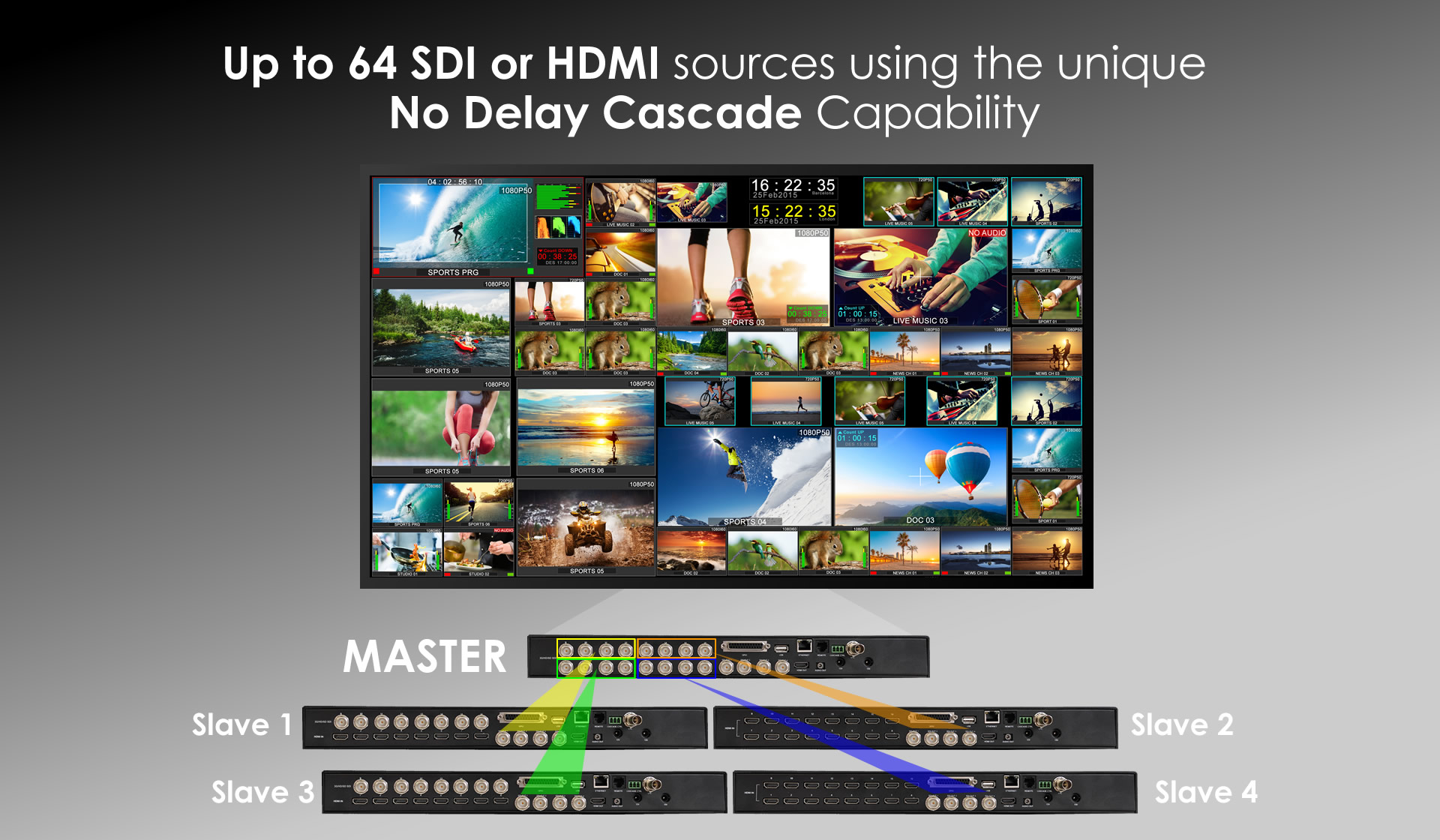

4craft is an easy to use modular Multiviewer with 4 x 3G/HD SDI outputs and 4K HDMI output, and 8 or 16 3G/HD/SD SDI inputs. With superior quality 10bit image processing engine, the 4craft is a hardware based Multiviewer with low processing delay. 4craft integrates our communications B2B-Link system to cascade equipments without adding delay, to increase the number of sources to be displayed in your system and an Ethernet connector to control the Multiviewer remotely using our user friendly drag and drop Remote Control Software (SNMP compatible).

Features Multiviewers CBP-100

Smart and Lightweight Aluminium Design

Compact and Lightweight Aluminium single rack unit Design for easy integration, 4Craft is an easy to use 4K Multiviewer with Dual Functionality front keyboard and encoder for quick control and fast configuration of the equipment. 4Craft is a space-saving, fanless, energy-efficient Hardware based Multiviewer that grant low temperature while working. Get the most out of your Multiviewer with the 4K Output and the 4 x 3GSDI outputs and the Videowall and Cascading Capability!

Modular Multiviewer CBS-3000 CPU


Professional broadcast adjustments

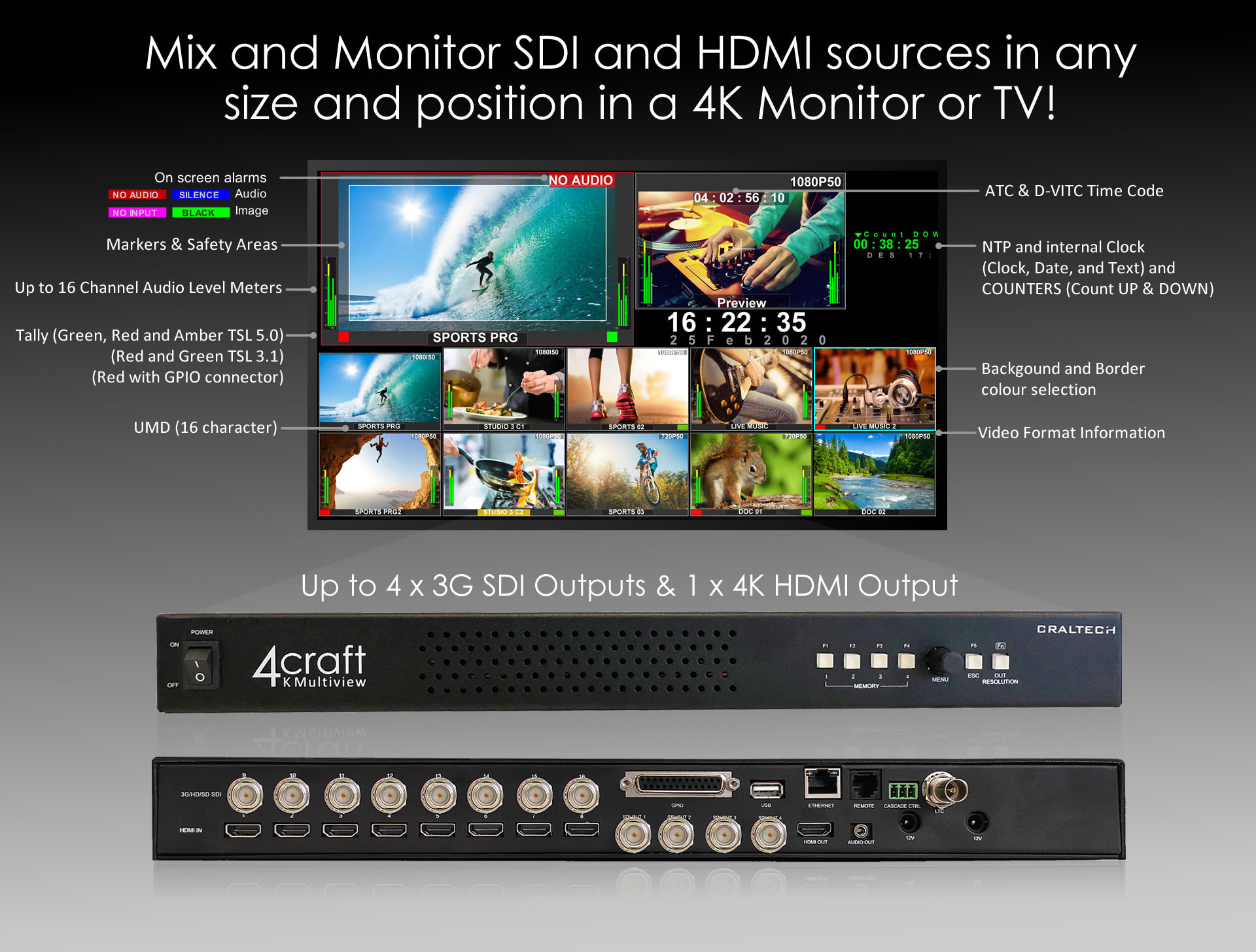

These multiviewer have all professional features and adjustments as UMD and Tally, Aspect Ratio Selection, Markers, Real time color Waveform and Vectorscope per input, 16 Channel Audio Level Meters, Alarms, Timecodes, Clocks & Timers,.. 4Craft integrate user configurable direct keys and encoder to easy navigate through the OSD menu. Any adjustment can be located in a direct key, to access functions just with a press, and keys LED lights can be turned off if required for dark environments.


Features Quad-split LCD Monitors

Markers

Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Features Quad-split LCD Monitors

Alarms

On screen video and audio alarms with selectable color and time selection. No Input, Black Image, No Audio, Silence.

Features Quad-split LCD Monitors

Waveform & Vectorscope

Real time color Waveform and vectorscope per input. Select between RGB, R, G, B, YCbCr, Y, Cb, Cr Waveform and two different sizes of scopes. Locate the scopes anywhere on the source quadrant.

Features Quad-split LCD Monitors

Timecode and Source Format Information

On screen ATC Timecode information and Video Format Information

Features Quad-split LCD Monitors

16 Channel Audio Level Meter

Display up to 16 Channel Audio Level Meters with a wide range of options (All together, Separate in pairs-odds,.. Selectable Yellow and Red color level and two different sizes.

Features Quad-split LCD Monitors

Tally and UMD

Red, Green and Yellow tally and 16 character UMD compatible with TSL 3.1 and TSL 5.0. Three tally modes available: Square, Border and UMD (all can be activated together)

Features Quad-split LCD Monitors

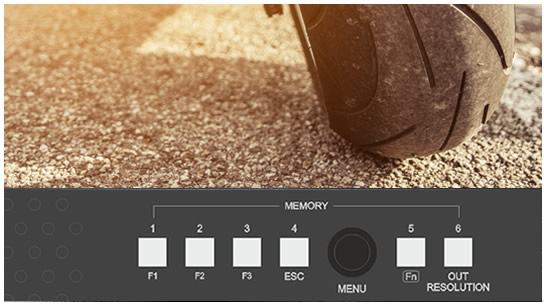

Encoder & Dual Funcionality Direct Keys

Encoder to easy navigate through the OSD menu, and direct keys with dual functionality (fixed/configurable). Activate [Fn] Mode to use F1 to F3 keys with your custom configuration and access your favourite adjustments just with a press. Keys LED lights can be turned off if required for dark environments.

Features Quad-split LCD Monitors

Border & Text color selection

Selectable Border and Text color. Available colors: black, white, red, green, blue, cyan, magenta, yellow and 7 grey levels.

Features Quad-split LCD Monitors

Clocks & timers

Display up to 2 clocks and 6 timers in your Layout. NTP and internal clocks and UP and Down Counters.

4K multiviewer software

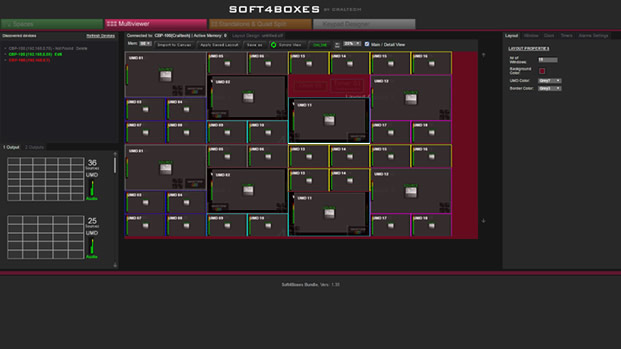

Soft4Boxes Pro Control Software

Soft4Boxes Pro is a software to control our Multiviewer Monitors and Video Processors. S4B PRO is an intuitive and user-friendly "drag & drop" control software. * Click here for more information!


- 4K Modular Multiviewer system
- Hardware based (NO Pc, NO hard-drive)
- Easy to use scalable modular multiviewer system
- Up to 16 (3G/HD/SD-SDI) inputs in 1RU
- 4 x 3G/HD SDI and 1 HDMI 4K output
- 10 bit image processing engine with low processing delay
- Quick control: Easy to use keyboard with user configurable direct keys and encoder
- Aspect Ratio Selection (4:3, 16:9)
- ATC & D-VITC Time code (SDI)
- Markers and safety areas
- No audio, Silence, No input and Black image on screen alarms
- 16 Channel Audio Level Meters (embedded audio)(3G/HD/SD-SDI)

- Real time color Waveform (Selectable RGB, R, G, B, YCbCr, Y, Cb, Cr) and Vectorscope per inputs
- Selectable format of Audio level meters (Vertical or Horitzontal)
- NTP and Local Clocks and Timers
- 16 characters UMD and video format information per input
- Tally and UMD, TSL 3.1 and 5.0 compatible
- Selectable Background, border, text color
- Free user friendly drag and drop control software and firmware update by USB
- SNMP Compatible system
- Redundant power supply
- Space-saving, fanless, energy-efficient and lightweight aluminium design


VIDEO INPUTS

- Up to 16 3G/HD/SD-SDI

3G-SDI

- SMPTE 424M-2006 level A
- Format: 1920x1080p (60, 59.94, 50)
- Cable lenght: 85m Belden 1694A
- BNC Connector

HD-SDI

- SMPTE 274M and SMPTE 296M
- Formats: 1080p (30, 29.97, 25, 24, 23.98, 30PsF, 29.97PsF, 25PsF, 24PsF, 23.98PsF) 1080i (60, 59.94, 50) 720p (60, 59.94, 50)
- Cable lenght: 100m Belden 1694A
- BNC Connector

SD-SDI

- SMPTE 125M/259M
- Formats: 480i (59.94) 576i (50)
- Cable lenght: 250m Belden 1694A
- BNC Connector

VIDEO OUTPUTS (Box CBS-3000)

- 1 x 4K HDMI Output and 1080i (50,60), 1080p (25, 30, 50)
- 4 X 3G/HD SDI Outputs: 1080i (50,60), 1080p (20,30,50,60)

GPIO CONNECTOR

- GND Contact closure

ETHERNET (Box CBS-3000)

- RJ-45 Connector

USB CONNECTOR (Box CBS-3000)

- Upgrade system

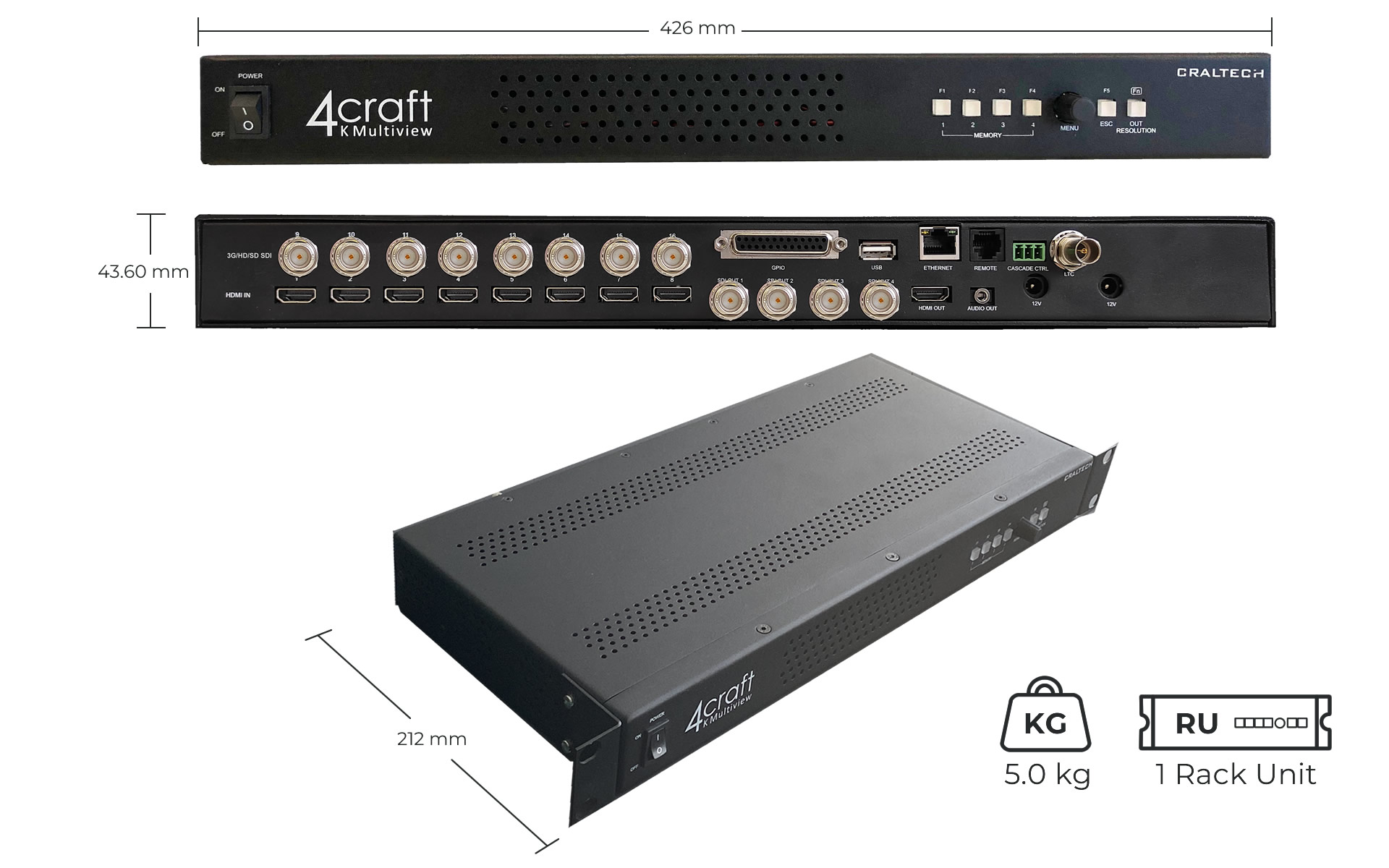

DIMENSIONS

- 426 x 43 x 212 mm (1RU)
- 1,5Kg without boxes (2,5Kg with boxes)

POWER REQUIREMENTS

- 12V DC (XLR Connector)
- Power consumption 24W


4K MODULAR MULTIVIEWER VIDEO PROCESSOR

- 4Craft

VERSIONS

- 4Craft (Full version with 4 Outputs)
- 4Craft-DUO (dual output ONLY)
- 4Craft-ONE (1 Output ONLY)

4Craft

- Data Sheet: 4Craft - 4K Modular Multiviewer Video Processor
- Manual: 4Craft - 4K Modular Multiviewer Video Processor
